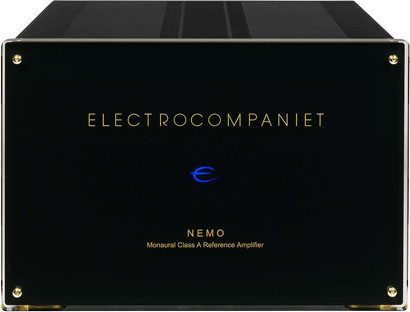

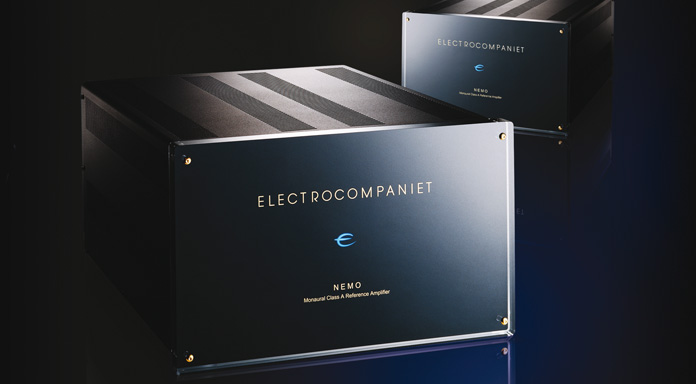

NEMO (AW600) MONO BLOCKA new standard for power amplification
The Electrocompaniet AW600 monaural power amplifier represents the ultimate fidelity in sound reproduction. Audiophiles, recording engineers, record producers and reviewers around the world rely on the AW180M’s faithful reproduction of the original master recording.
The stunning capabilities of the Electrocompaniet AW600 cannot be explained – they have to be experienced.
The AW600 incorporates such refined features as: FTT (Floating Transformer Technology) power supply, capable of delivering twice the current of a conventional power supply, a first class overall circuit design and state-of-the-art components
Power and control, but with a liquid, spacius and effortless aproach that removes any hint of electronic interference, leaving only sheer, clear music in their wake. Extreme sonic value for money, they set a new standard for power amplification.
Audio&Video South Africa
«Absolut Spitzenklasse, Überagend-58 punkte.»
(59 points is the highest score on a poweramplifier tested in Stereoplay, and it cost 2-3 times more)
«A Manly Man Of An Amplifier»
– Up with the best valvejobs I’ve ever heard, and grainless liquidity that no other solid-state amplifier I’ve heard can match.
A cross between a singel ended triode and Arnold Schwarzenegger. Unlimited power and bottom slam, handles complexity without a hint of confusion. Enormously wide and deep soundstage. I would pick them over every other solid-state amplifier I’ve heard.
Ultimate Audio, Winter 2000
|All measurements are made at 120V / 240V //50Hz / 60Hz|
|Clipping point of the preamplifier is set to a level where total harmonic distortion (THD) is 0.2%|
|Input Impedance (Fixed)||330 kohm|
|Output Impedance (20 Hz-20kHz)||< 0,009 Ohm|
|Frequency response (DC – 65 kHz)||– 0.4 dB|
|Input level for rated output||1 V RMS|
|Max. peak current||> 150 A|
|THD(measured at 1 kHzhalf power,8W)||< 0,001 %|
|THD (measured at 1 kHz -1 dB, 8 W)||< 0,0015 %|
(measured with bothinputsshorted)
|400 Hz – 30 kHz : 150 µV
DC – 30 kHz : 200 µV
|Damping factor (20 Hz – 20 kHz)||> 850|
|Rated output power|
|8 ohms||600 W|
|4 ohms||1200 W|
|Power consumption (no load or signal)||230 W|
|The NEMO is DC coupled from input to output|
|Width||465 mm / 18.3 inches|
|Depth||514 mm / 20.2 inches|
|Height||288 mm / 11.3 inches|
|Weight||41 kg. / 90.2 lbs.|
