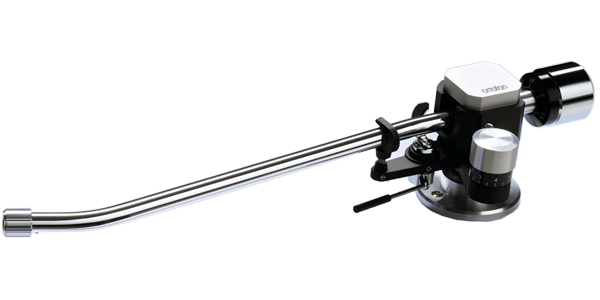

Ortofon AS-309S 12″ static-balance tonearm

Varenummer: Ortofon AS-309S 12" static-balance tonearm

Ortofon AS-309S 12″ static-balance tonearm


1 på lager

  • Tilleggsinformasjon
Vekt 0.00 kg

Ortofon AS-309S 12″ static-balance tonearm

AS-309S 12 inch static-balance tonearm features high quality materials and construction, combined with a nod to analog’s past, for precise sound reproduction combined with a modern-vintage aesthetic

AS series tonearms can be used for a wide array of cartridges (SPUs require an additional counterweight) and feature anti-skating control.

Technical data:

Effective mass (without headshell): 4.0 g

Effective length (distance between the stylus and pivot point): 329mm

Mounting distance between the pivot point and turntable center: 314mm

Offset angle: 19 degrees

Overhang: 15mm

Tracking force adjusting range ( direct reading): 0 to 3g

Height adjustment range: 35mm to 55mm

Diameter of the armbase mounting hole: 19mm to 20mm

Diameter of center shaft: 18mm

Optional counterweight for heavier cartridge between 26 and 38 grams is available

Download AS-212S / AS-309S Mounting template here
