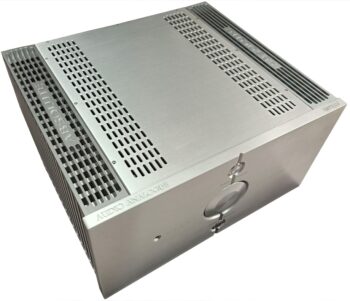

Audio Analogue ABsolute

Audio Analogue ABsolute


Clear selection

ABsolute… the essence of this integrated amplifier is perfectly revealed in its name.

The most ambitious project of Audio Analogue after over 25 years of history and certainly the best way to celebrate such an important anniversary.

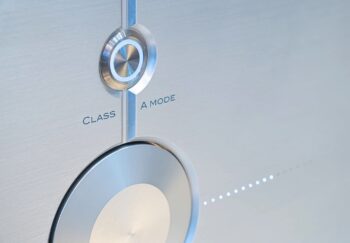

A unique amplifier that gives the opportunity to enjoy the refinement of pure class A sound or the power of class AB simply touching a button. Audiograde components of the highest level and selected to optimize the performance of the amplifier in both modes of use.

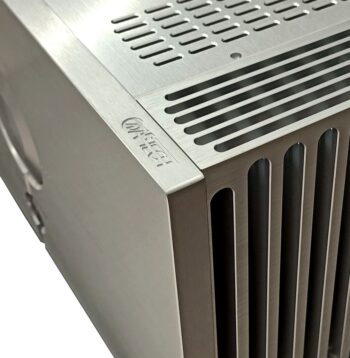

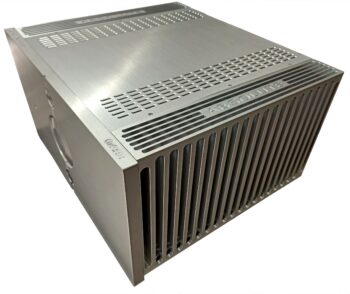

Massive shapes, which combine the cleanliness and elegance of the design to an extreme solidity, characterized by the heavy heatsinks machined from solid, which in addition to being unique pieces are a perfect example of the excellence of Made in Italy craftsmanship.

Powerful, versatile, refined, extremely musical… all this is Absolute, an amplifier that creates a new reference in the world of high-end high-fidelity.

Technical description

Zero Global feedback circuit designed by Airtech(SeGeSTA configuration)

All stages fully balanced, dual-mono configuration and discrete components circuits

Power stage with 12 bipolar transistors per channel, 81600pF filter capacity per channel Oversized military resistors to minimize thermal distortion Audiograde components, microcontroller management.


Technical specs Channels:    2

Power on 8Q load: 50W(class A)/150W(class AB) @ 1% THD

Power on 4Q load: IOOW(class A)/300W(class AB) @ 1% THD

Power on 2Q load: 200W(class A)/600W(class AB) @ 1% THD

Sensitivity(8Q output, 50W, class A): 0.5 VRMS

Sensitivity(8Q output, 150W, class AB): 0.87 VRMS

Frequency Responce(@1W, 80hm, Attenuation -3dB): IHz, 200KHz Signal/noise ratio(Attenuation: OdB A weighted referred to 8Q load nominal power): >95dB(class A)/>100dB(class AB)

Distortion @10W, 1KHz < AB)

Distortion @50W, 1KHz <

Distortion @150W, 1KHz < 0.05%(class AB)

Standby power consumpition(230V): < 1 W

Dimensions(mm): H270xW483xD445 Weight(Kg): 50


Ta kontakt med oss for bestilling. Produktet fåes i sølv aluminium, og sort anodisert aluminium.

Dette produktet håndlages pr bestilling, og er således unntatt 14 dagers bytte- og retur rett.
